- Size: 16000X3000X1600
- Place of Origin: CHINA
- Brand Name: best
- Model Number: lowboy semi trailer
- Weight: 10500.000 kg
1.As one of our best selling products,it's main beam is well welded by the submerged arc machine and well treated by the shot blasting machine,

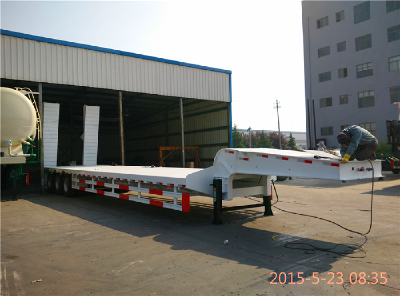

2.This type 50tons-70tons payload low bed semi trailer is wided used for carrying excvavtor ,road roller,containers and other machines,
3.Since having a strong design team for low bed semi trailer , more than 1000 workers for prodution,and the quality inspection team, you are always served by the right and high quality products, and welcome you visit our company and factory at anytime.
| Specifications | |
| Tare Weight | (Semi Trailer)About 9.1T |
| Dimension | 12450×2490×1575mm( outside dimension,The exact size depends on the final design.) |
| Loading Capacity | less than 45 tons |
| Bottom Plate | Thickness: 3mm checkered plate /Q235 steel |
| Axle | 13 T/16T, FUWA /BPW /Huajing Brand two or three axles |
| Rim | 9.00-22.5, 13pcs |
| Tire | 12.00R22.5/ 315 80R22.5, 13pcs |
| Suspension | Mechanical suspension (German or American type) or air suspension (Chinese brand or BPW brand ) |
| Spring leaf | 90(W)mm×13(Thickness)mm×10 layers or 100mm×12mm×12 layers |
| King pin | JOST brand 2.0 or 3.5inch (bolted or welded type) |
| Support leg | JOST brand C200T or Chinese brand 28Tons (Double speed) |
| Main beam | Height: 500mm Top plate: 14mm Middle Plate: 8mm; Bottom Plate is 16mm; Material: Q345B Steel |
| Side beam | 16mm or 18mm steel channel (Material: Q235steel ). |
| Brake chamber | WABCO RE 6 relay valve; T30/30 T30 Spring brake chamber (TKL brand); 45L air tanks |
| Twist lock | 4, 8, or 12 sets (lifting or screw Type) |
| ABS | Optional |
| Valve | WABCO valve |
| Light | LED light (specially intended for oversea market ) |
| Voltage | 24V |
| Receptacle | 7-pin Socket (for 7 wire harness) |
| Tool box | 1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.) |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
| Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. |
- Size: 16000X3000X1600
- Place of Origin: CHINA
- Brand Name: best
- Model Number: lowboy semi trailer
- Weight: 10500.000 kg
| Use: | Truck Trailer | Type: | Semi-Trailer | Material: | Steel |
| Certification: | ISO9001,3C, ISO9001 3C | Size: | 16000*2800*1660 | OEM No.: | 3708322800116 |
| Max Payload: | 50T | Place of Origin: | Shandong, China (Mainland) | Brand Name: | BEST |
| Model Number: | BET9400TDP | Condition: | New | Axle: | 3axles,FUWA or BPW brand |
| King pin: | 2" or 3.5" | Steel spring: | 10 pieces per axles | Support legs: | JOSTD200Tor Tongyada 28T |
| Axle number: | Three | Axle specs.: | FUWA Brand | Tool box: | One or more |
| Colour: | Any colour can be choose |
