- Place of Origin: China
- Brand Name: best
- Model Number: BS94001TJZG

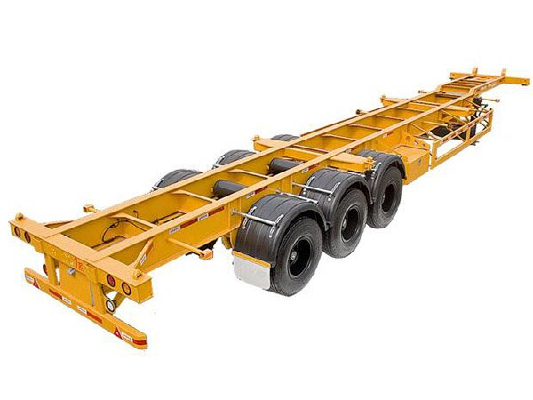

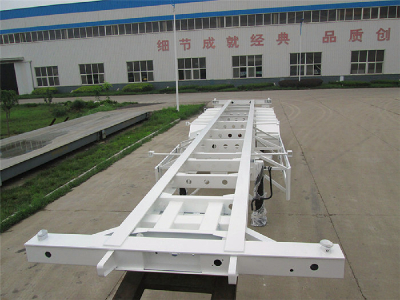

The skeleton semi trailer is specially designed to carry vaious cargo containers.You can choose to use you load trailer transport one 20 inch ,40inch or 45 inch container or two 20 inch containers at one time.The only difference that your choice makes is the number of locks required for specific transportation appplications.
- Place of Origin: China
- Brand Name: best
- Model Number: BS94001TJZG
specification
Gross Weight | About 5.5 tons or 3.2 tons |
Outer side dimension (mm) | 12450 × 2490 × 1557 (three or two axles) 40FT 7160 × 2490 × 1557 (two axles) 20FT |
Loading Capacity (Ton) | ≤ 45 T (40FT) ≤30T (20FT) |
AXLES | 13 T /PER , FUWA Brand, BPW Brand, or Huajing Brand |
Tire | 12.00R22.5 or 315/80R22.5 China Brand or According to Customer requirement |
Rim | 9.00-22.5 China Brand |
Suspension | Mechanical suspension (Germany Type or America Type) Or Air suspension (China brand or BPW brand ) |
Spring leaf | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
King pin | JOST brand 2.0 or 3.5inch bolts type or Welding type |
Support leg | JOST brand D200T or China brand 28Tons (Double speed) |
Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345B Steel . |
Side beam | 16mm or 18mm channel steel ( Material is Q235steel ). |
Brake chamber | WABCO RE 6 relay valve; T30/30 T30 Spring brake chamber(TKL brand); one piece of 45L air tanks |
Twist Locks | Four ,Eight or Twelve pieces (Lifting type or Twist Screw Type) |
Valve | WABCO valve |
ABS | Optional |
Light | LED light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms: | Transport by bulk cargo carrier, RORO or 40HQ container. |
