- Size: 12000X2500X3600
- Place of Origin: LIANGSHAN
- Brand Name: best
- Model Number: BS9600CCY
- Weight: 8500.000 kg

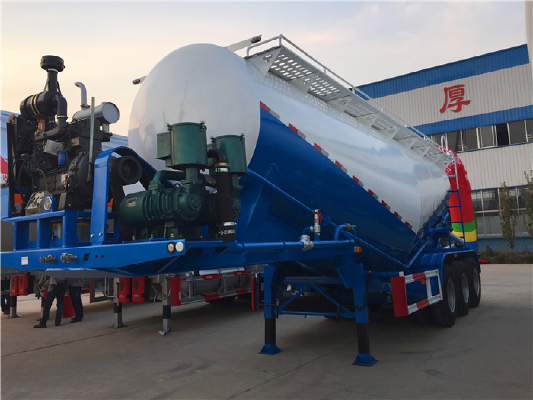

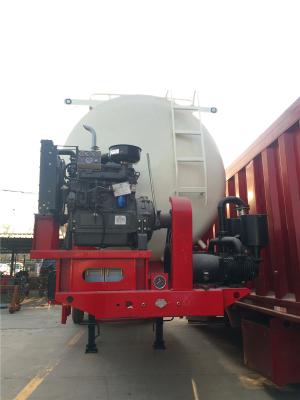

Tri-axles bulk cement tanker truck:
Main Dimensions | |
Tank Body | |
Shape | Optional ( One Silo with V type or Two ,Three Silos Design) |
Dimension | 12000mm*2490mm*3990mm ( Exact size depends on the final design) |
Tare weight | About 7500KGS-15000KGS |
Total Volume(m3) | 25m3-68 m3 |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel |
End Plate | 5mm or 6mm /Q235 carbon steel |
Diesel Engine | WEICHAI ,Tianhe 4100/4102 or other brand |
Compressor | BOHAI 10m3/12 m3or other brand |
Manhole Cover | Carbon steel or Aluminum 500mm |
Discharging Valve | Diameter is 3 or 4 inch (Material: Aluminum ) |
Discharging Pipe | 3 or 4 inch rubber hose, 1pcs, 6m/each |
Cat Walk | With (Common model or special design) |
Chassis | |
Main Beams | Welding Design ,Q345 carbon steel |
Axle | 2 or 3 axles, 13T BPW/FUWA/HUAJING brand |
Landing Gear | JOST (D200T)or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /Air Suspension |
Leaf Spring | 90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 |
Pneumatic Braking System | WABCO RE 6 relay valve; T30/30 T30 Spring brake chamber(TKL brand); 45L air tanks. |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo ,RORO |
WELCOME YOU AND YOUR FRIENDS COME TO VISIT OUR COMPANY AT ANY TIME!
