- Size: 90
- Place of Origin: china
- Brand Name: best
- Model Number: BS9400GYY
- Weight: 8000.000 kg
Specification: | |

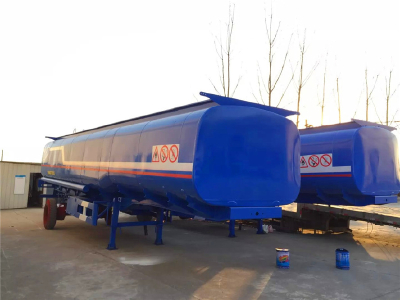

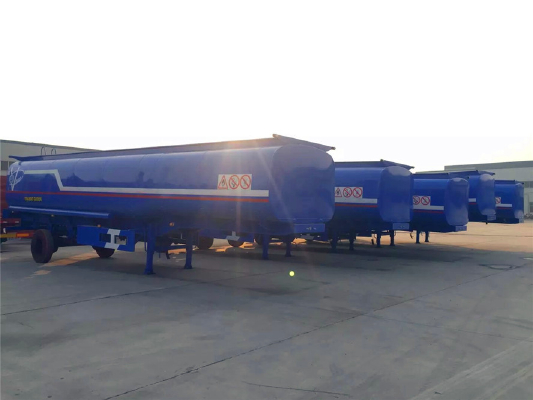

Type | 45cbm Manufacture Bitumen Tank Semi Trailer |
Function | Stevedoring and transporting of chemical fuel, such as oil and diesel oil, etc. |
Overall Dimension | 12,500x2,500x3,800mm |
Frame Thickness | Tank body: 5mm End plate: 6mm Wave-proof plate: 3mm |
Discharge Value | 2 Sets, 3 inch. |
Tare weight | 9,000kg |
Volume | Approx. 45m³ |
Axle | fuhua brand, 3*13ton |
Compartments | 1 compartment |
Manhole cover | Manhole cover: 500mm 2 sets with 2 breath valves |
Discharge valve | 3 inch disc valve, 2 sets |
Discharge pipe | 4 inch seamless steel tube |
Suspension | CIMC Standard Suspension |
Emergency valve | Bottom valve, 1 set |
Leaf Spring | 10/10/10 |
Tire | 12R22.5, 12 pcs |
Rim | 9.0*22.5, 12 pcs |
Kingpin | 2' or 3.5' |
Landing Gear | China band |
Brake system | 2 line pneumatic brake system. Type 30/30 spring brake system on two axles. ISO type air coupling at front of the semi-trailer. Without ABS. |
Brake chamber | 6- Double |
Electrical system | Voltage: Chinese standard 24V Receptacle: 7 ways (7 wire harness) |
LED lamps. Side: reflectors (orange). Rear: direction indicators (orange) /brakes (red)/rear warning (white). | |
Side Guard | Side protection guards on both sides. |
Tool Box | 1 psc |
Spare Tire Carrier | 2 psc |
Painting | Anti-corrosive prime: 1 coat Final paint: 2 coats |
Colour and Marking | By customers’ requirement |
- Size: 90
- Place of Origin: china
- Brand Name: best
- Model Number: BS9400GYY
- Weight: 8000.000 kg
Fuel Tanks Competitive Prices Oil Storage Tankers By Sinotruck Trailer ------ FAQ
1. How do you transport the semi trailers?
We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.
2. Can you satisfy my special requirement? Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
3. How can you guarantee quality? Our raw material and OEM parts including axle, suspension, tyre,
every node will be inspected strictly. Moreover, advanced equipment rather than only worker is been applied
during the whole producing process to ensure the welding quality.
