Axle number

Three

Axle specs.

FUWA Brand

Suspension

Common mechanical Suspension

Wheel

12.00R22.5, Vacuum tire Triangle Brand

King Pin

JOST 50#/90# traction pin

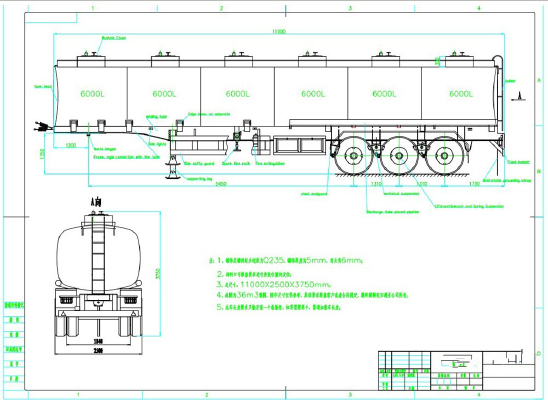

Outside Dimensions
 (LxWxH)

11500*2490*3990mm

Support legs

JOSTC200T

Rim

9.00×22.5 Zhengxing Brand

Wheelbase

5700 1310 1310mm

Heating system

1.One layer of thermal insulation (Galvanized sheets, thickness is 1mm)
inner tank (5 mm thick carbon steel) insulation layer (50mm thick rock wool)
  outer shell (1 mm thick stainless steel)

Manhole

Diameter 500mm, two pieces

Discharge Hole

3" thickness rock wool insulation with 2mm thick Zinc Coated sheet cladding

Steel Spring

10 pieces per axles

Tire:

Number of Tire

12

Spare Tire Carriers

2 pieces

Frame: (specs. and materials)

The material of
Tanker body

The tanker body made of 5mm steel plate, the foreside head and back side head made of 6mm steel plate, TV square shape.
