- Place of Origin: CHINA
- Brand Name: best
- Model Number: BS9408GYYA
Shape | Round Shape | |
Outside Dimensions | 13*2.5*3.9m | |
Tare Weight | 8T | |
Loading Capacity | 40000L | |
Total Volume | 40m3 / 40000 liters | |
Tanker Body Material & End Plate | 5mm /Q235 carbon steel of Aluminum alloy | |
Manhole Cover | Carbon steel or Aluminum alloy API manhole cover , 500mm | |
Bottom Volume | Aluminum API Pneumatic Bottom Valve | |
Discharging Valve | Diameter is 3 or 4 inch | |
Compartments | Optional | |
Discharging Pipe | 4” rubber hose,2 pcs,6m/each | |
Cat Walk | With (Common model or special design) | |
CHASSIS | ||
Tyre No. | 12 1 Spare Tire | |
Wheelbase | 1310mm | |
Axle NO. | 3 | |
Axle Weight Load | 13T | |
Leaf-spring pcs | 10 pcs | |
Traction Pin | 2'or 3.5' | |
Tire Specifications | 11.00R20,12.00R20 | |
Main Beam | Main Beams:Automatic submerged arc welded,Q345B/ST52-3 | |
Through Cross Beams:Q235 | ||
ABS | Optional | |
Suspension | Mechanical heavy duty leaf-spring suspension | |
Brake System | Automatic air brakes | |
Brake Chamber | Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber | |
Electrical System | 24V, 7core socket, lights according to European standards | |
Floor | Steel sheet 3mm thickness or diamond plate | |
Accessory | One tooling boxes ,Two spare tire carrier, Two fire extinguisher | |
Color and Logo | Depends on the customer's requirement | |

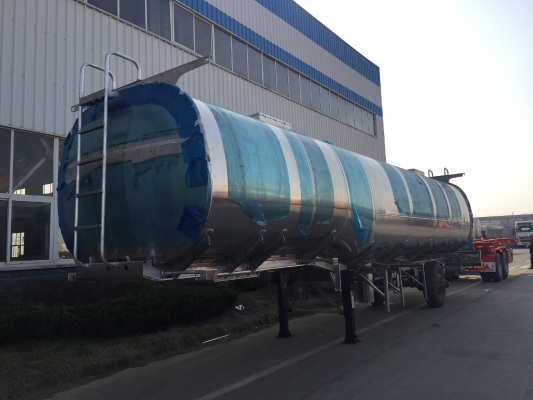

Usage | The cargo's carrying part is tank-style designed, is suitable for the transportation of liquid products,like crude oil,fuel and so on. | |
